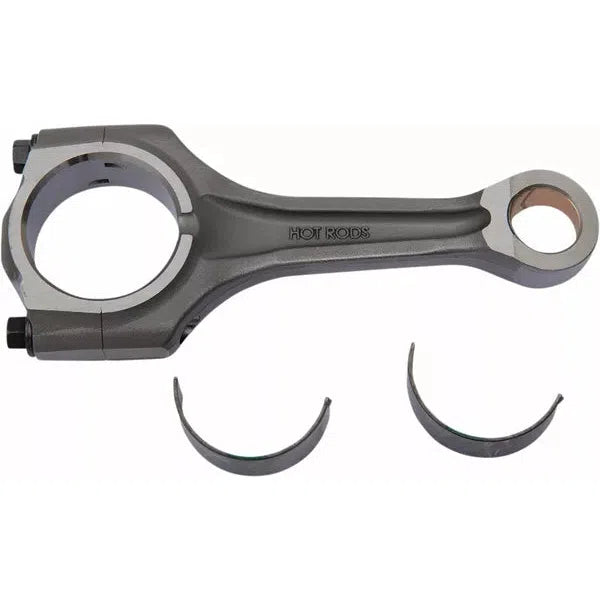

Connecting Rod 8716 8716

Connecting Rod

Certified 8620 AISI steel provides superior strength

Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc

Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity

Thrust washers are manufactured from bronze phosphor and are silver coated

Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers

Compatible with Hot Rods and OE crankshafts

Made in USA

Connecting Rod Big End I.D. 44.000 mm Connecting Rod Big End Width: 24.000 mm Connecting Rod Center-to-Center: 129.500 mm Connecting Rod Small End I.D. 20.000 mm Connecting Rod Small End Width: 20.000 mm Two required per vehicle. Heavy duty rod. Kit Includes: • Connecting Rod • Crank Pin Bearing
