Connecting Rod 8718 8718

Connecting Rod

Certified 8620 AISI steel provides superior strength

Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc

Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity

Thrust washers are manufactured from bronze phosphor and are silver coated

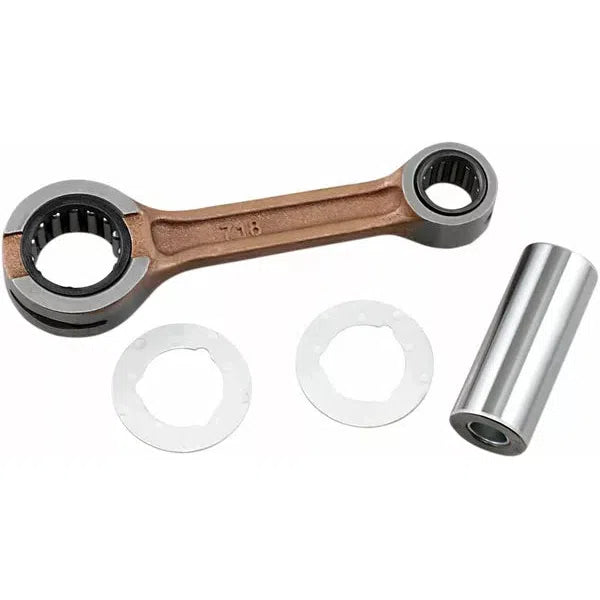

Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers

Compatible with Hot Rods and OE crankshafts

Made in USA

Connecting Rod Big End I.D. 29.000 mm Connecting Rod Big End Width: 17.000 mm Connecting Rod Center-to-Center: 102.000 mm Connecting Rod Small End I.D. 19.000 mm Connecting Rod Small End Width: 16.000 mm Thrust Washer Thickness: 1.000 mm Pin Length: 54.500 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Wrist Pin Bearing • Thrust Washers
