Hot Rods Connecting Rod Honda 8691

Connecting Rod Kit

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc

Feature the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Compatible with Hot Rods and OE crankshafts

Made in the USA

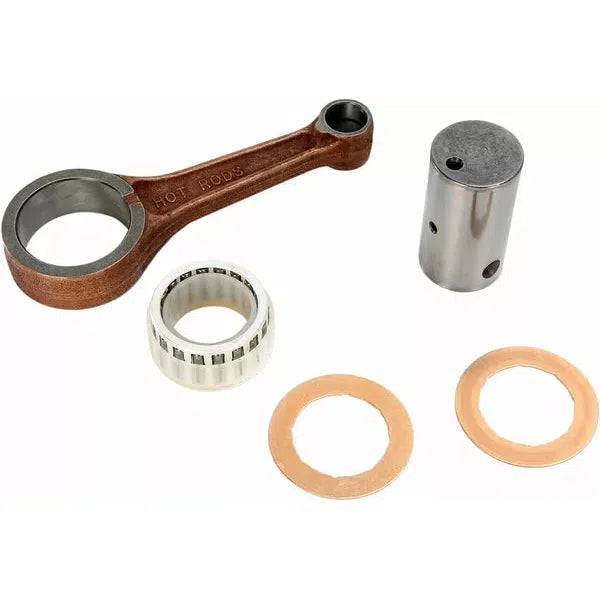

Connecting Rod Big End I.D. 38.000 mm Connecting Rod Big End Width: 18.000 mm Connecting Rod Center-to-Center: 105.500 mm Connecting Rod Small End I.D. 15.000 mm Connecting Rod Small End Width: 18.000 mm Thrust Washer Thickness 0.950 mm Pin Length: 53.900 mm Kit Includes: • Connecting Rod • Crank Pin • Crank Pin Bearing • Thrust Washers
